Bravo throttle not showing in MSFS 2020

[SimWare 821]

17 hours ago, Ha_Ma said:

Now i switched this tool off and with AFC it does not work right:

Hi Ha_Ma,



Made the same test and indeed the results are the same here.
It comes from the default profile that is intended to work with the standard MSFS aircrafts.

As no user Configurator currently available is, there is no "official and supported" way to change that for the time being.



Like with P3D and Xplane, the Configurator is required to "taylor" profiles specific to various addons.



The only way would be to alter the BFC_Throttle_Config.json file located in
C:\Users\[USERNAME]\AppData\Local\MSFSPackages\Community\AFC_Bridge\bin



--> This actually wat the Configurator and the Better Bravo Light plugin does.

If you want to explore this solution, I strongly suggest you make a safety backup copy of the original file before.

Best regards.

[Ha_Ma 195]

vor 4 Stunden schrieb SimWare:

If you want to explore this solution, I strongly suggest you make a safety backup copy of the original file before

Ehm... No, thanks. I guess i will wait for the update if the driver

[JuanRs 0]

On 7/27/2022 at 8:30 AM, Aviator2020 said:

Hi,



Is this a common problem or rare?

I am not the only among a few having this problem, am I?



Kind regards,

Im having the exact same issue, I had to manually assigned each button.


I got the annunciator (LEDs) to work once, But now Im not sure what I did that made it work.



any advice?

[SimWare 821]

Hi,



For the annunciator panel, first just make sure you installed the driver :
http://freeware.aerosoft.com/forum/downloads/AS_HONEYCOMB_MSFS.zip



If it doesn't start automatically, please have a look here :



Best regards.

[astro qu 0]

Maybe this is the reason make bravo not working.

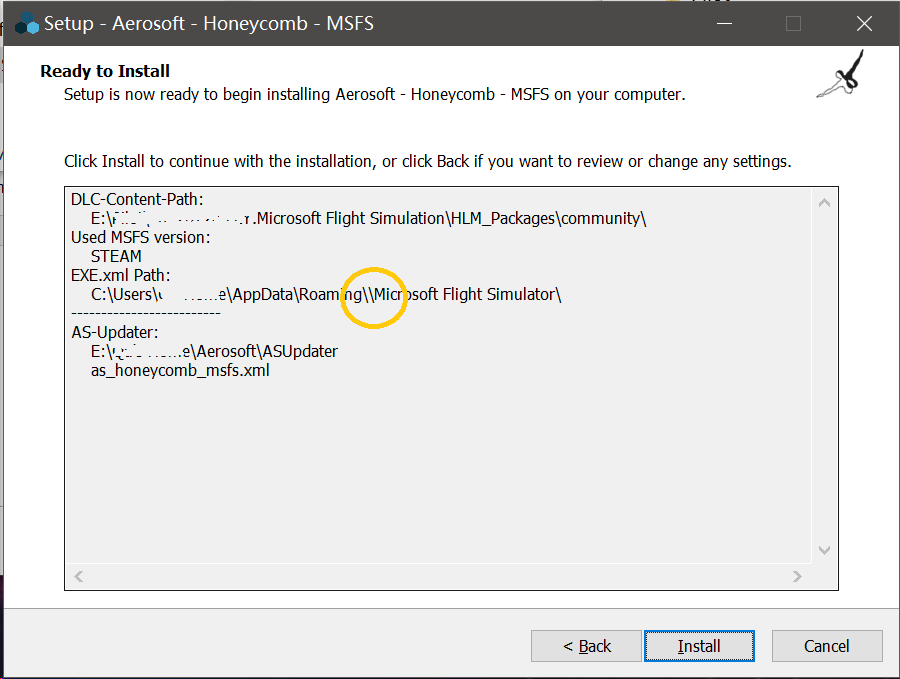

When I install AS_HONEYCOMB_MSFS_V2100.exe, the path showing is error.



Please login to display this image.

[SimWare 821]

Do you mean that your Honeycomb driver does not start automatically?

Does it work when started manually?

[SimWare 821]

You can start the Configurator manually by following this method :





[BenBaron 299]

vor 13 Stunden schrieb astro qu:

Maybe this is the reason make bravo not working.



When I install AS_HONEYCOMB_MSFS_V2100.exe, the path showing is error.



Please login to display this image.



Hi,

the double backslash should not stop the installation from working correctly. To make sure you can attach the exe.xml for us to have a look at.

[astro qu 0]

On 3/23/2023 at 1:23 AM, BenBaron said:



Hi,

the double backslash should not stop the installation from working correctly. To make sure you can attach the exe.xml for us to have a look at.

yes，installing is successful, and AFC_Bridge.exe can manually runing and bravo still not fully recognised.



I am wondering when the path is wrong ,how MSFS can find the exe.xml then auto load AFC_Bridge.exe?



I have searched Registry and configure files in the install folder ,I want to repair the path but find nothing.

[astro qu 0]

BTW,don't need install any software and Bravo working fine in the X-Plane 11 on the same PC.

[SimWare 821]

What do you exactly mean by "not fully regognized" ?
Please be very detailed and specific as for what isn't recognized, what plane is in use,
and what are the bindings you made in MSFS.



Regards.

[astro qu 0]

On 3/24/2023 at 4:52 PM, SimWare said:

What do you exactly mean by "not fully regognized" ?
Please be very detailed and specific as for what isn't recognized, what plane is in use,
and what are the bindings you made in MSFS.



Regards.

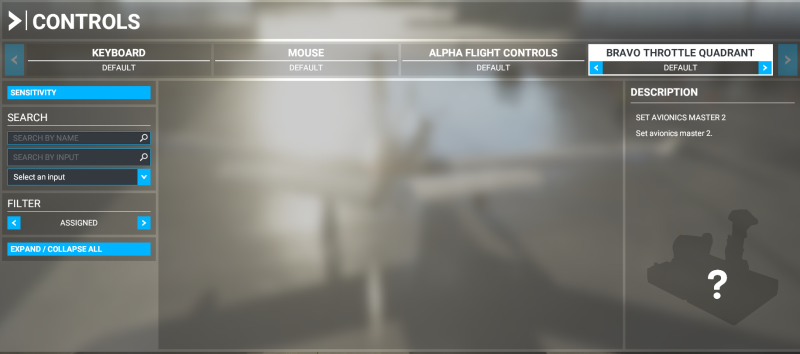

The problem I encountered is exactly the same as mentioned in the first post. The Bravo device in MSFS shows a question mark status .so the MSFS not fully regognized the bravo and not configured even when I mannually successfully start AFC_Bridge.exe.I tried to install the AS_HONEYCOMB_MSFS_V2100.exe many times then accidentally discovered that the path of the exe.xml during the installation process was incorrect(the previous post). I blieve that many people has this problem.  And this problem only happened in MSFS.

Please login to display this image.

[SimWare 821]

Just set the "FILTER " on the left to "ALL" and the functions will become accessible.
Please check this tutorial :



[astro qu 0]

It's not perfect solutions.

[SimWare 821]

Well it works.

The issue comes from the known controles database of your MSFS copy. (If it correctly shows in other sims)

Somehow it has been corrupted.

Also, since the default bindings are not there, you will need to make your own ones, and, believe me, this will save you a lot of hassle later...

[SimWare 821]

In addition to the previous post, please also check this one :



[astro qu 0]

On 3/28/2023 at 4:14 PM, SimWare said:

In addition to the previous post, please also check this one :



Thanks very much for your help！

[SimWare 821]

11 minutes ago, astro qu said:

Thanks very much for your help！

You are welcome.
