Replacing the printed circuit of a TCA throttle module.

This short tutorial will show you how to replace the internal printed circuit of a Thrustmaster TCA spoiler module.
The same procedure can be applied to the flaps module.



You first need of course to purchase a replacement board :

Please login to display this image.



STEP 1 :

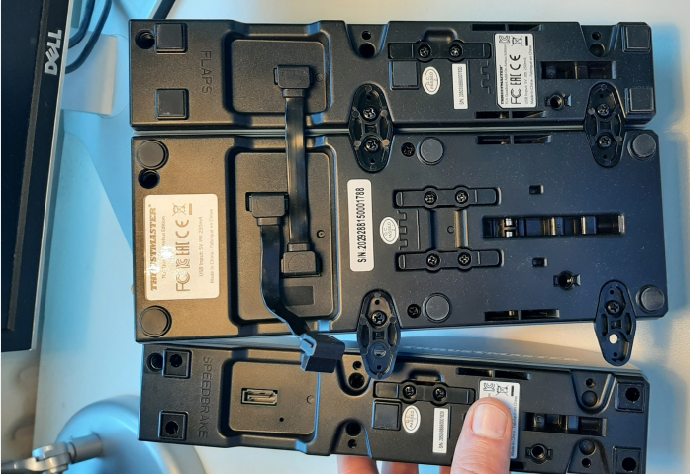

Remove the module from the main throttle module.

Please login to display this image.

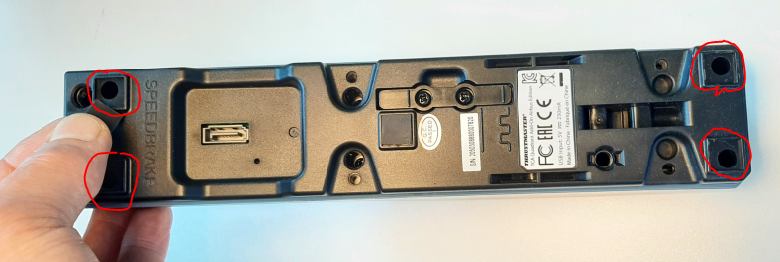

STEP 2 :
Remove the 4 rubber feet.

Please login to display this image.

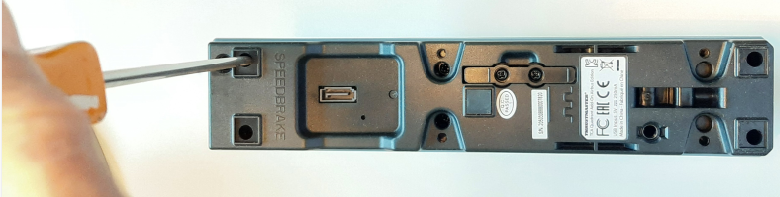

STEP 3 :

Remove the mounting screws underneath the rubber feet.

Please login to display this image.

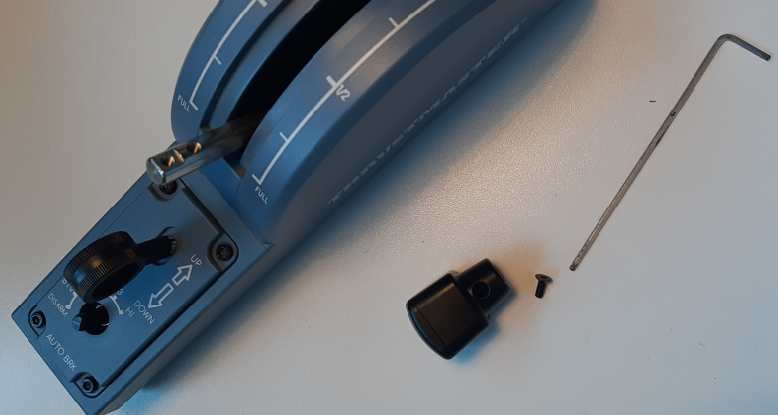

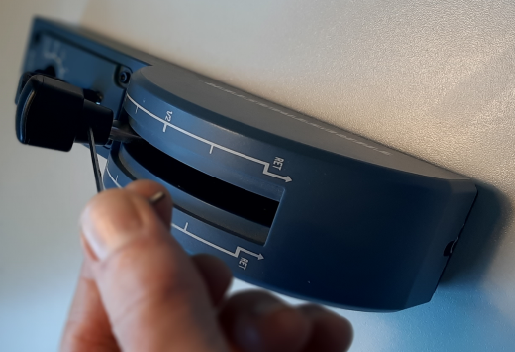

STEP 4 :

Remove the knob of the lever by unscrewing the 2 mm Allen set screw.

Please login to display this image.

STEP 5 :
The lever is now free to slide off the plastic housing

Please login to display this image.

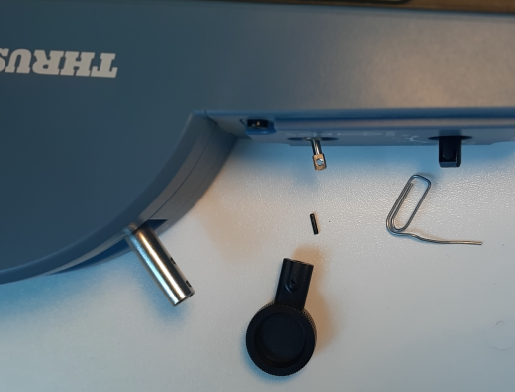

STEP 6 :
Remove the gear lever knob by pressing out the dowel pin with small rod or paperclip.
Gently pull the knob.

Please login to display this image.

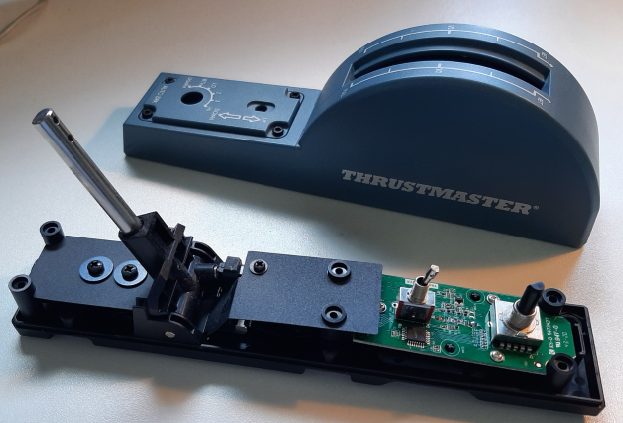

STEP 7
The blue plastic housing can now be removed, giving access to the internal parts
of the module and allowing removal of the printed circuit.

Please login to display this image.

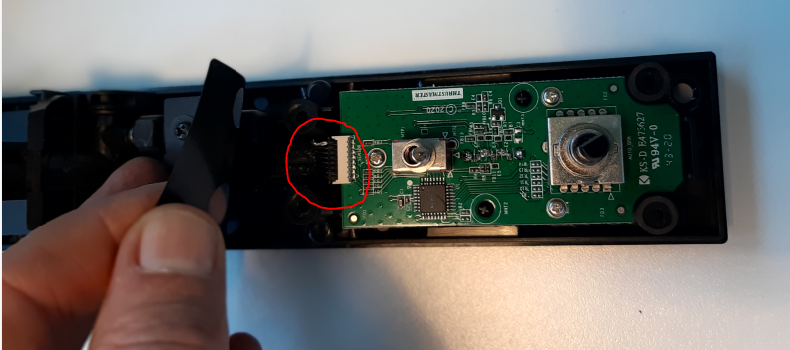

STEP 8 :
Disconnect the flat cable by pulling it very gently.

Please login to display this image.

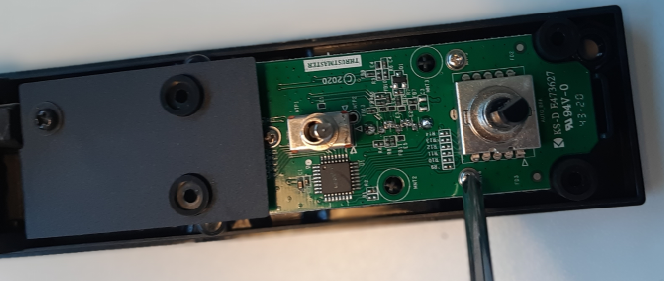

STEP 9 :
You can now remove the 3 mounting screws and the plate will come loose allowing replacement.

Please login to display this image.
