ATR 72-500 logo light

[Buzzer 0]

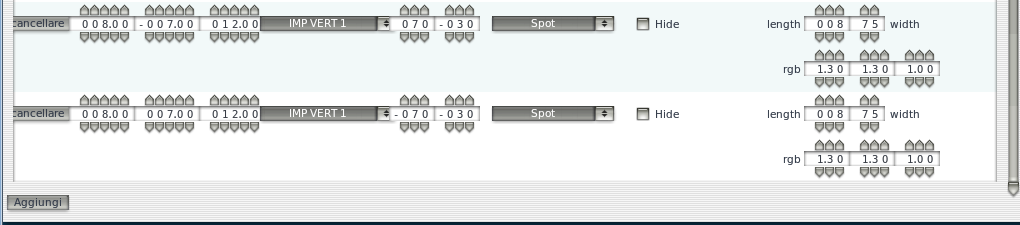

Hello, I love this this wonderful plane and missed a logo light so I have added it and is toggled with the spot light switch. Open the Plane-Maker and add this lights, then in X-plane assign a key to the spot light toggle.

regards

[Guest]

Hello Buzzer,

thanks for this info ...

Good idea..

Greets

[thelaststand 2]

Hi Buzzer and Heinz,

Could you explain me in steps what to do to add the logo light? I am not familiar with the planemaker and this pic doesn't help me. Thank you all in advance.

Greetings

[Guest]

Hello,

it is simple.

Start Plane Maker (located in X - Plane 10 main folder).

Then load the ATR 72 . File - Open ( the ATR72.acf ) .

Then : Standard - Viewpoint - Ext. Lights.

At the bottom click on Add ( 2 times, because we need 2 spots ) .

And then EXACTLY enter the values ​​that Buzzer has stated above ( in the picture) .

The first three values ​​determine the location (coordinates ) of the illumination .

The next two values ​​determine the direction of the the spot (angle) .

The rightmost values ​​determine the size of the beam and the color of the light.

As a goal of lighting select VERT STAB 1 (for both lamps; selection list on the left ) .

And of course as a lamp select Spot (selection list on the right ).

Then close the viewpoint window by clicking on the X .

Then File - Save (CTRL -s) .

Then File - Quit ( Close Planemaker ) .

Then you just have to configure a joystick button to " spot_lights_toggle " (or a keyboard key ) .

Start X-Plane 10.

Menu Settings - Joystick& Equipment.

Buttons: Adv. - lights.

At first click on the Button you want to configure.

Then choose lights - spot_lights_toggle.

Close the "Joystick & Equipment" window.

So the button is configured.

And then you have a "logo light " .

Greets Heinz
