Hi,

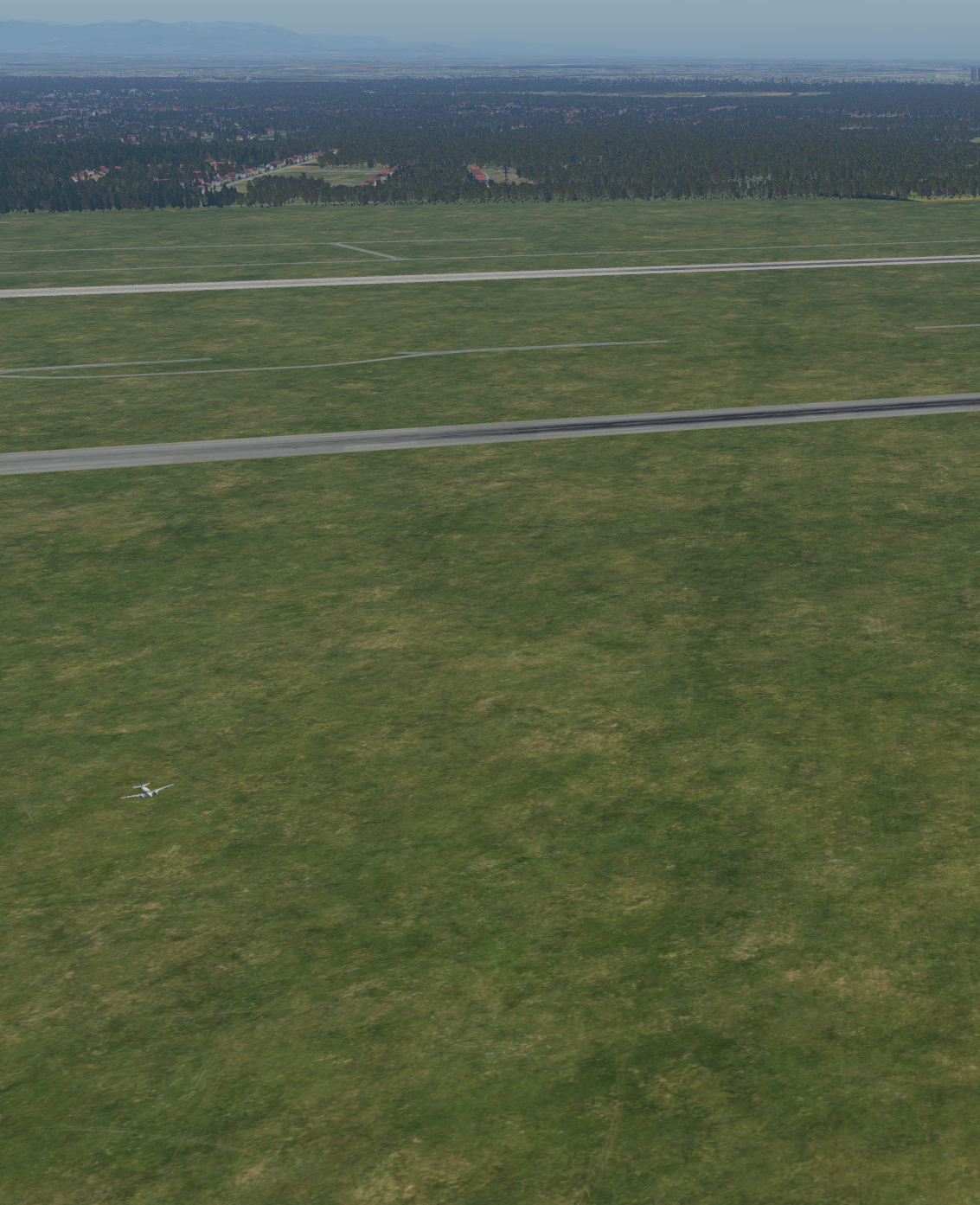

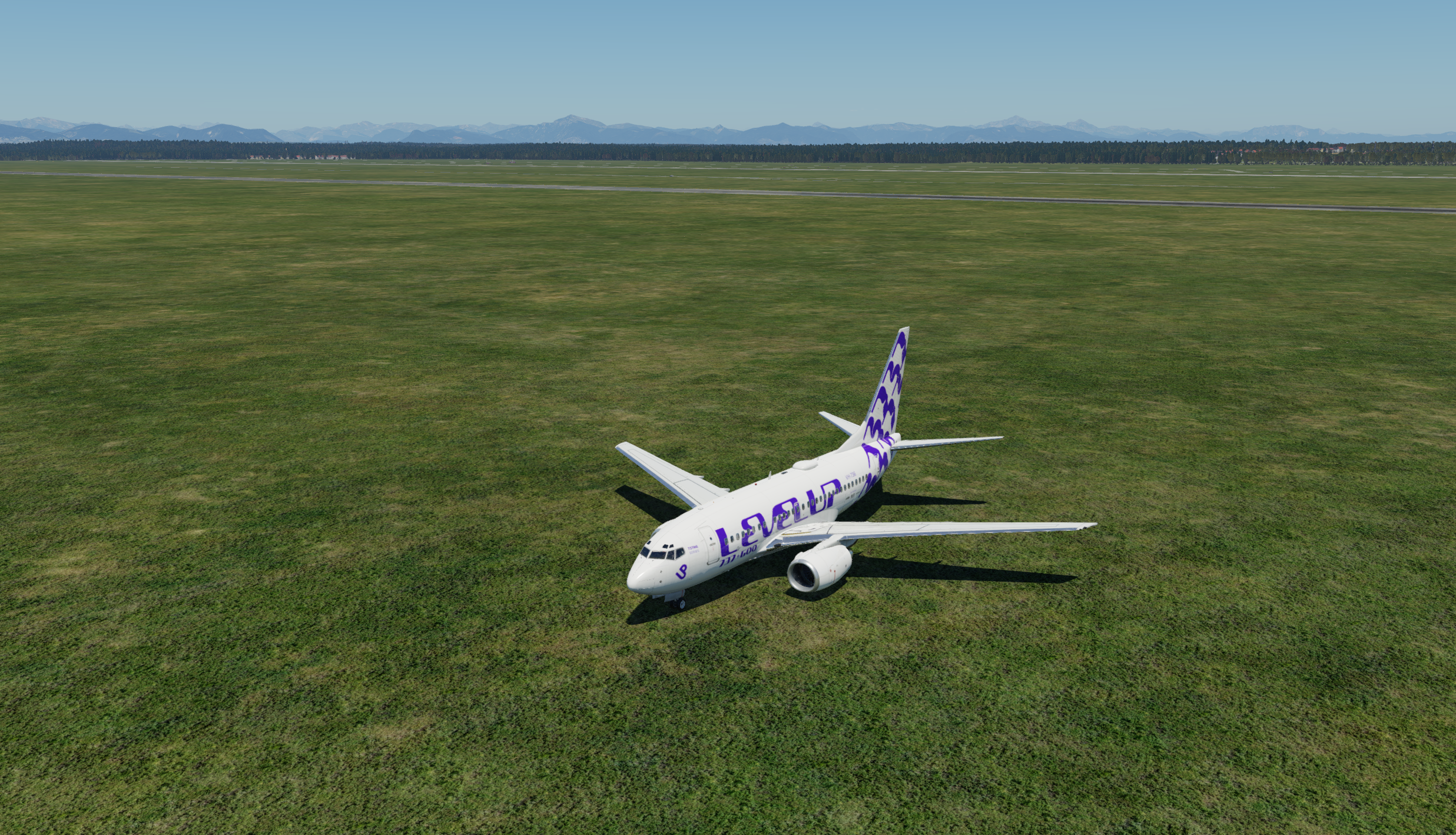

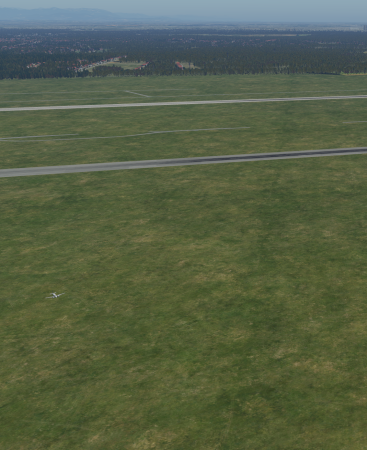

I bought the Aerosoft scenery for xp12 from the website and I downloaded it from the Aerosoft app but now I don't see the scenery.. Like it's only grass and nothing else at Malpensa

Hello,

do you have installed the SAM Plugin? This is reqired.

You can do it also with Aerosoft One (menu Dependencies).

Install the SAM for XP12.



Or if you don't want SAM or if SAM will not work, then you can install the Fallback library:

https://forum.aerosoft.com/index.php?/topic/177522-flyagi-sam3-fallback-library/



Greets Heinz

Hello,
I installed SAM 3 for XP12 and nothing..
The sim says to take a look at the log.txt and I founded this: DSF canceled due to missing art assets, file=Custom Scenery/Aeosoft - LIMC Milan Malpensa - 00 - Airport/Earth nav data/+40+000/+45+008.dsf, err=15 (dsf_ErrCanceled). 0:00:23.961 E/SYS: +------------------------------------------------------------------------------- 0:00:23.961 E/SYS: | C'è stato un problema durante il caricamento dello scenario: 0:00:23.961 E/SYS: | Custom Scenery/Aeosoft - LIMC Milan Malpensa - 00 - Airport/ 0:00:23.961 E/SYS: | Lo scenario potrebbe non venire visualizzato in modo corretto. 0:00:23.961 E/SYS: | Verificate il file log.txt per informazioni dettagliate sull'errore. 0:00:23.961 E/SYS: | (io_dsf.cpp:1330) 0:00:23.961 E/SYS: +------------------------------------------------------------------------------- 0:00:23.961 E/SCN: WARNING: got error on DSF load for scenery file 45, 8, Custom Scenery/Aeosoft - LIMC Milan Malpensa - 00 - Airport/ 0:00:23.961 I/SCN: DSF load time: 55947 for file Global Scenery/Global Airports/Earth nav data/+40+000/+45+008.dsf (0 tris, 0 skipped for 0.0 m^2) 0:00:23.961 I/SCN: DSF load time: 3427377 for file Global Scenery/X-Plane 12 Global Scenery/Earth nav data/+40+000/+45+009.dsf (459461 tris, 16 skipped for -7536.4 m^2) 0:00:23.961 I/SCN: DSF load time: 2414811 for file Custom Scenery/Aeosoft - LIMC Milan Malpensa - 01 - Mesh/Earth nav data/+40+000/+45+008.dsf (339714 tris, 46 skipped for -51951.3 m^2)

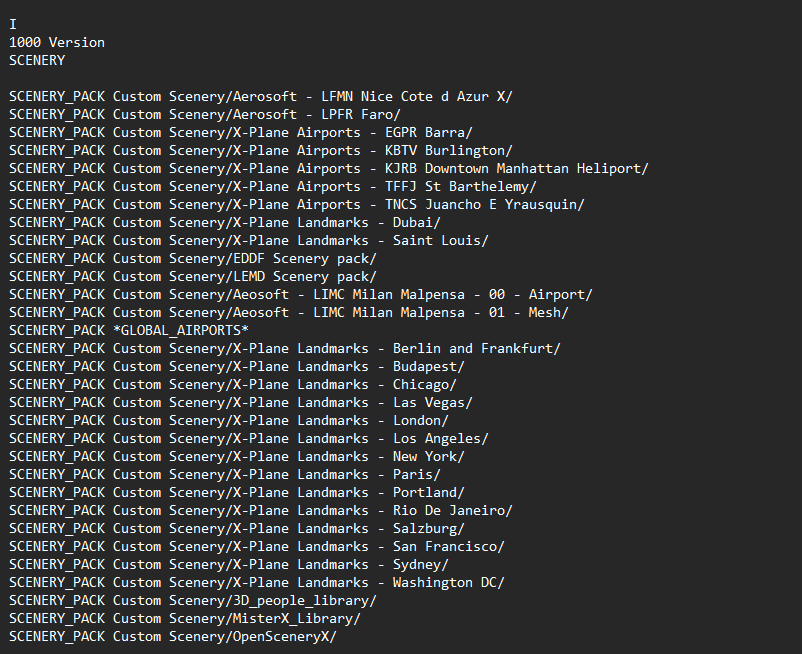

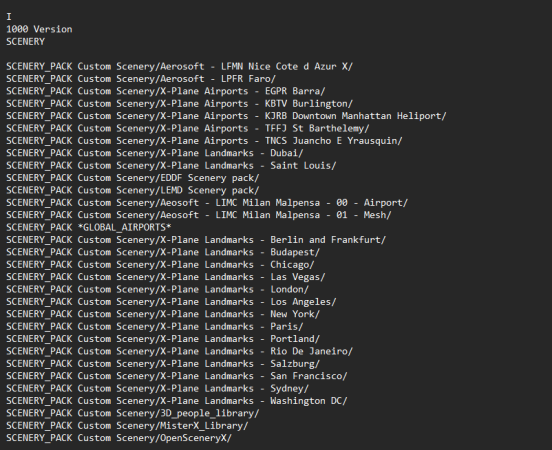

In your scneery_packs.ini the mesh is positioned on top of the airport - put the mesh to the bottom of the file and it should work. In general, if you see no 3D objects at all, it's caused by a mesh having higher priority than the actual scenery.

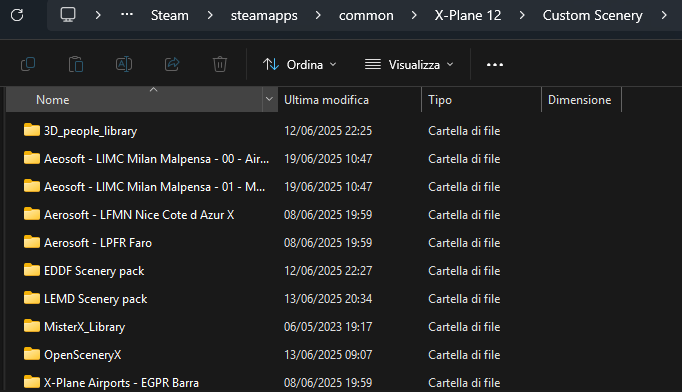

these 2 malpensa files under open scenery?

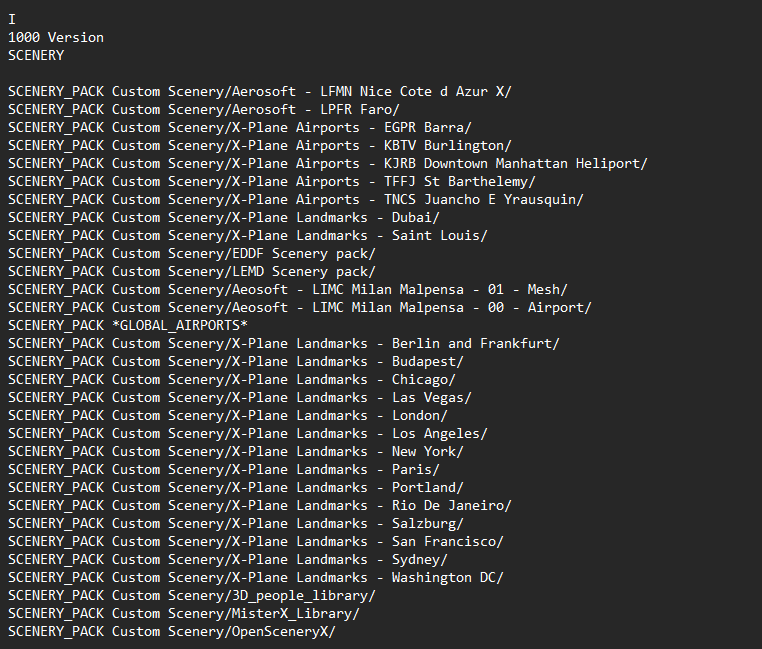

No, only the mesh one below OpenSceneryX, the airport is fine.

trying now



nothing..doesn't work



nothing..doesn't work



the log..

Log.txt

By the log you still don't have SAM3 installed, the error that now shows up is related to that so please installe SAM3 (you can do that in Aerosoft One or manually here). Without SAM3 installed the scenery will not load properly.

Will try that in some hours.. Thanks for the patience and I'll let you know

You are on steam version of X-Plane by the log, is that correct? In this case SAM3 won't work correctly so do the following:

1. Go to "X-Plane 12/Resources/Plugins/SAM/lib" folder
2. Copy "SAM_Library" folder (click on it and press ctrl + C)
3. Go to  "X-Plane 12/Custom Scenery" folder
4. Paste "SAM_Library" here (press ctrl + V)
5. Now you should have "SAM_Library" in your Custom Scenery folder

The scenery should then start properly (if you got the mesh placed correctly as explained above) but you don't have SAM functionality, no moving Jetways and stuff like that. To fix that, please install OpenSAM from this link. There click on the "openSAM-XP12-v4.1.2.zip " to download that file and unpack it, then move the plugin into your "X-Plane 12/Resources/plugins" folder.





works!! Thank you very very much. I really appreciated the interest and the patiance in this. Thanks

Thanks for reporting and great it works now.



🙂
