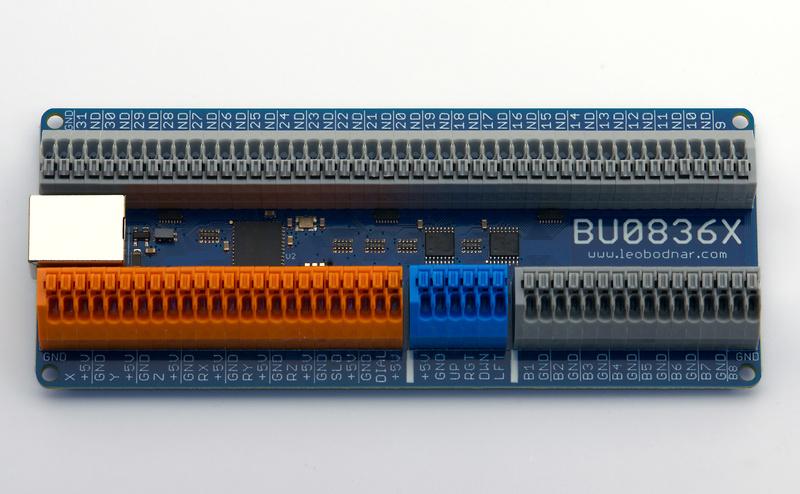

LeoBodnar BU0836X 12-bit joystick interface

Please login to display this image.

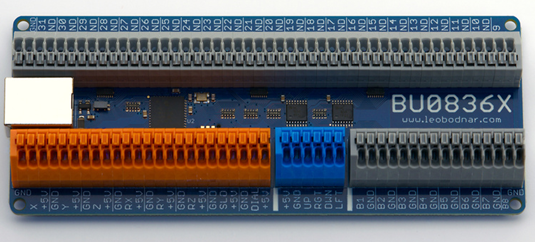

This bord is as simple as it is powerful :

It is recognized as a standard Joystick with 32 digital inputs (Buttons), 8 analog inputs (potentiometer/axis) and a Chinese Hat.
The digital inputs can be paired to interface with encoder.

It can be used with almost any simulator or game without installing any drivers on Windows, Linux or Mac.

Just connect your own buttons, switches, potentiometers, etc. and build you own cockpit, avionic, control, etc.

NOTE : We don’t sell, support, promote, guarantee or even deeply know this product.
             This post isn’t a guarantee it will function with your computer or modules or display.
             It is purely informational within the scope of a free open forum.

All the info and data here.

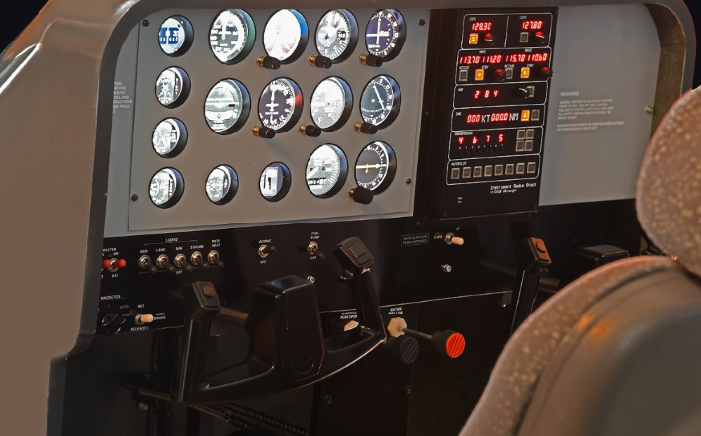

This simulator below is exclusively interfaced with 2 x BU0836X boards (except the RadioStack from VRInsight)
The instrument panel rotaries, the buttons and switches and all the controls (Yoke, throttle quadrant, rudder, etc.) use these boards.

Please login to display this image.

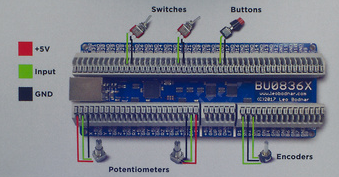

Connection example :

Please login to display this image.

Please login to display this image.
