Removal of the Gear lever of the Bravo Throttle

SimWare
in Behind the scenes

Featured Replies

  • Aerosoft


Removal of the Gear lever of the Bravo Throttle

STEP 1 :

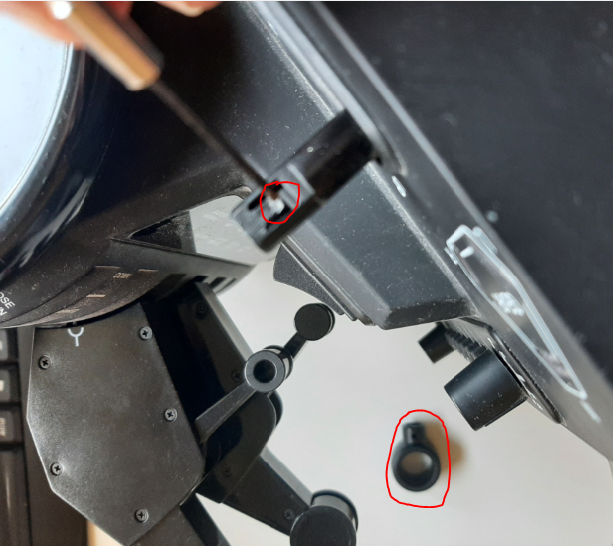

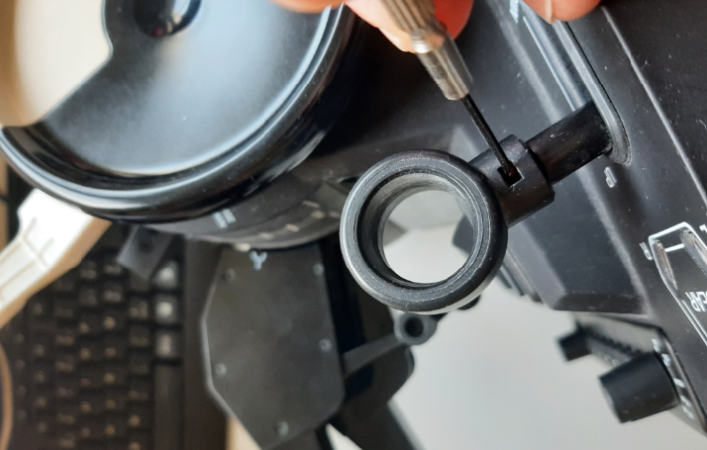

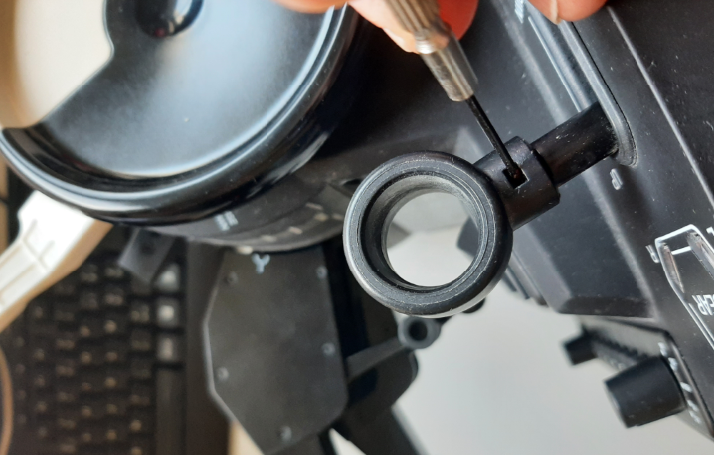

Remove the hollow knob by pressing the little latch down.


Knob is removed :

STEP 2 :

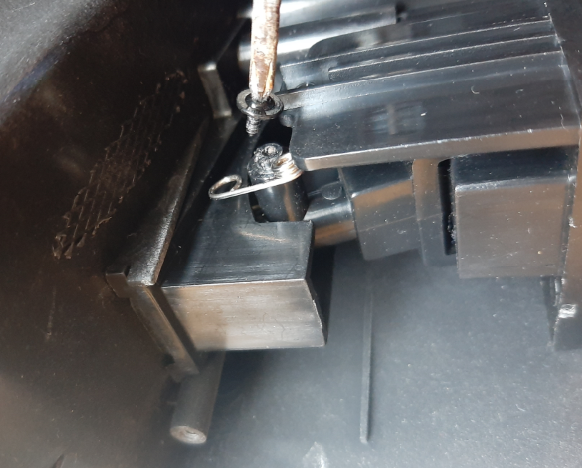

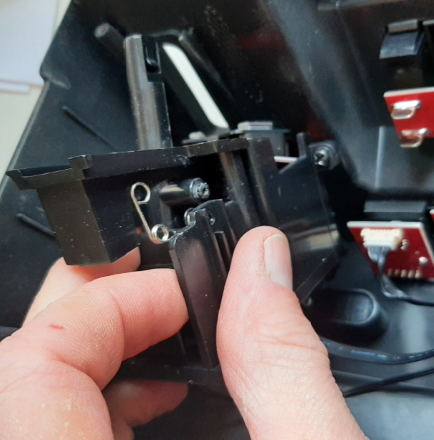

Remove the detent spring inside the housing.

STEP 3 :

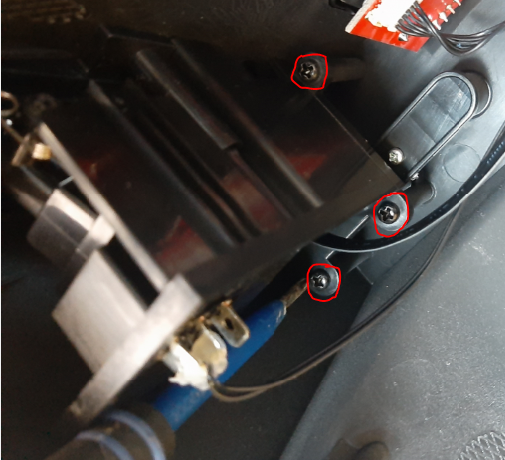

Remove the 3 screws holding the gear assembly.

Assembly is removed :

STEP 4 :

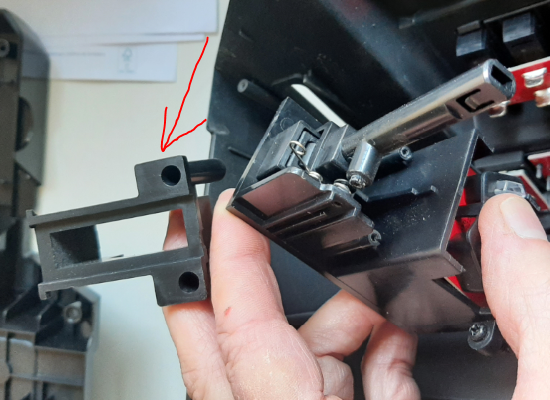

Unscrew the lever holder screws.

The lever holder is removed :

STEP 5 :

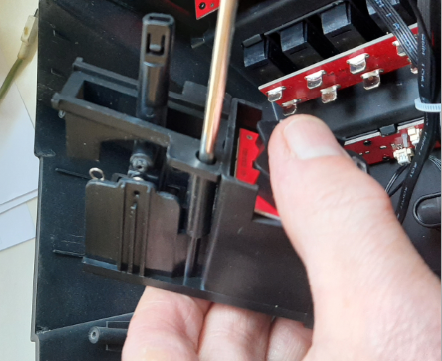

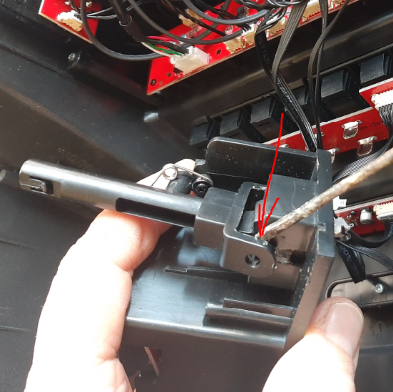

CAREFULLY unlock the lever attachment with a flat screwdriver.
Do not force. This is the tricky part…

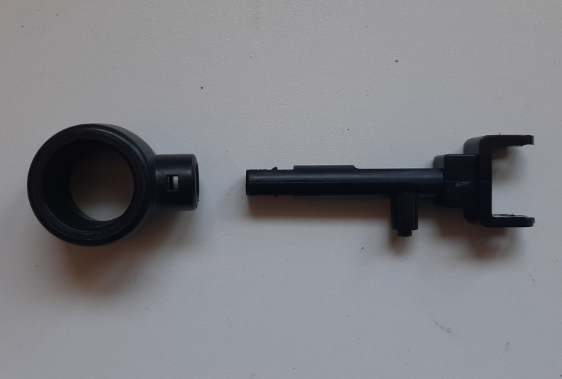

Lever is removed :
