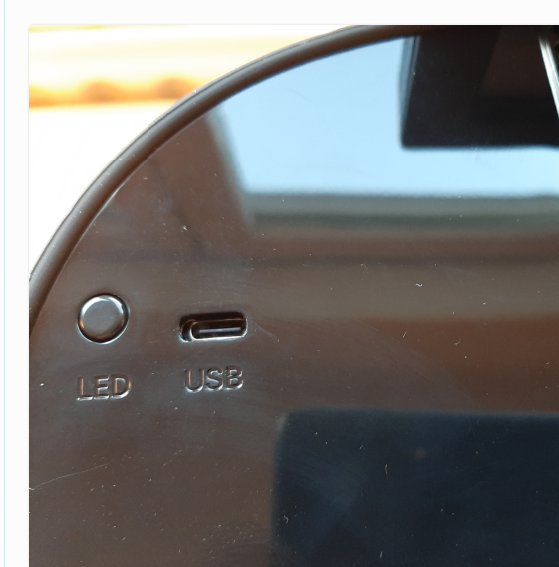

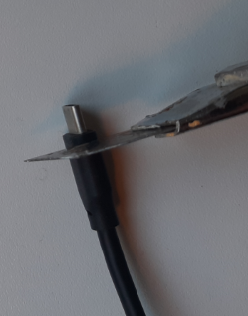

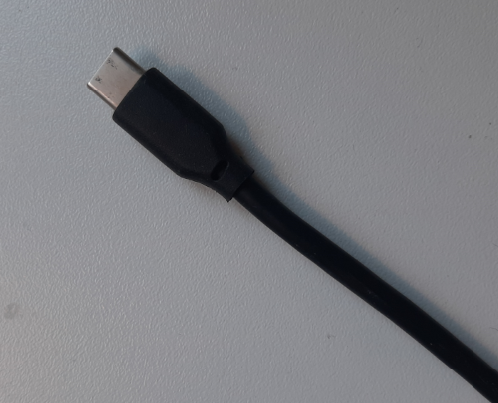

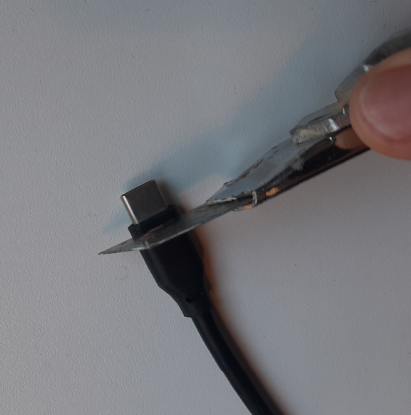

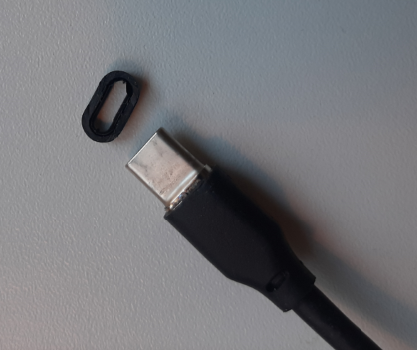

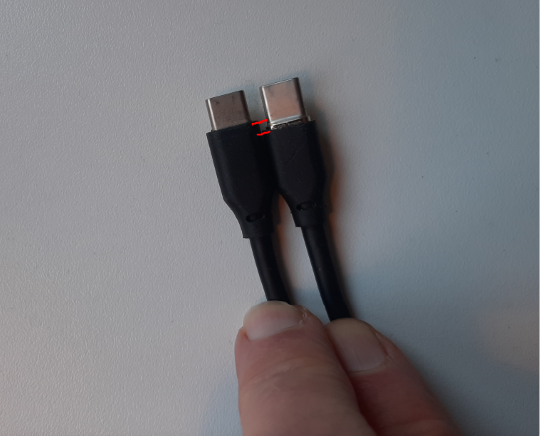

Aerosoft SimWare 827 Posted December 22, 2021 Aerosoft Share Posted December 22, 2021 Please login to display this image. Solving the loose USB contact issue in the Honeycomb Alpha Yoke. It has been reported in some cases that the USB connection to the computer sometimes broke down. Wobbling or pushing the connector in the USB port could restore the connection, but in the same manner, cable or connector movement could interrupt the connection. This is not really a fault, but the result of cumulative tolerances on the small USB-C system. In some cases the USB port is a little bit too deep inside the Alpha housing, preventing the USB cable to go deep enough to insure reliable electrical contact. On the picture below, the USB port is “buried” a little too deep inside the housing. Please login to display this image. THERE IS AN EASY FIX FOR THIS ! STEP 1 : Take the USB cable, USB-C side. Please login to display this image. STEP 2 : With a standard cutter cut out a +/- 1mm slice of the rubber part as shown below. Please login to display this image. Please login to display this image. Please login to display this image. STEP 3 : The metallic part is now longer, allowing the connector to enter deeper into the port. (Hereunder, the connector before and after) Please login to display this image. That’s it ! The electrical contact is now very firm and reliable. 2 1 Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/ Share on other sites More sharing options...
dcthreepainter 4 Posted January 8, 2023 Share Posted January 8, 2023 I don't have a problem, but I checked my Alpha (purchased July 2022) out of curiosity. While plugged in, I can see some of the metal portion of the USB-C connector via a gap between the Alpha's case and the cable sheath. So I suspect this issue has been resolved by the manufacturer ...unless someone else has a recent purchase exhibiting the problem. Let us know! Regardless, Thanks for the helpful info @SimWare! Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1101368 Share on other sites More sharing options...
Aerosoft SimWare 827 Posted January 8, 2023 Author Aerosoft Share Posted January 8, 2023 You are welcome. It isn't really a problem of a single specific piece. It is the sum on some tight tolerances combined to cumulative errors of a rather small connection system. It is a "deadly" combination, difficult to identify and expensive to solve. The trick above allows to solve 99% of the occurrences of this issue quite easily. Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1101372 Share on other sites More sharing options...
Seth2413 27 Posted November 3, 2024 Share Posted November 3, 2024 Had an issue with my honeycomb alpha consistently disconnecting and thought id have to repair/ replace. Found this advice, did a quick cut and working beautifully again. Thank you to whoever and this will bounce it anyway in case others begin to have this issue. 1 Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1122238 Share on other sites More sharing options...
Aerosoft SimWare 827 Posted November 3, 2024 Author Aerosoft Share Posted November 3, 2024 Thank you for your feedback. Thank you also for spreading information and experience. Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1122239 Share on other sites More sharing options...
Matti8u 0 Posted June 12 Share Posted June 12 Will doing this void my warranty? Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1128118 Share on other sites More sharing options...
Aerosoft SimWare 827 Posted June 12 Author Aerosoft Share Posted June 12 Where did you buy this unit from ? Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1128119 Share on other sites More sharing options...
Matti8u 0 Posted June 12 Share Posted June 12 10 hours ago, SimWare said: Where did you buy this unit from ? Canada Computers, in Canada. I would assume it's ok though, as it is just the cable I am cutting. I can replace the cable if need be. I just want to make sure that if I modify the cable, it doesn't void the warranty for the whole unit. Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1128131 Share on other sites More sharing options...
Aerosoft SimWare 827 Posted June 12 Author Aerosoft Share Posted June 12 This depends on the vendor, but as it is an external cable, there are few risks. Better ask your vendor for confirmation tough. Link to comment https://forum.aerosoft.com/index.php?/topic/169124-solving-the-loose-usb-contact-issue-in-the-honeycomb-alpha-yoke/#findComment-1128134 Share on other sites More sharing options...
